Omron/Servo Motorlar

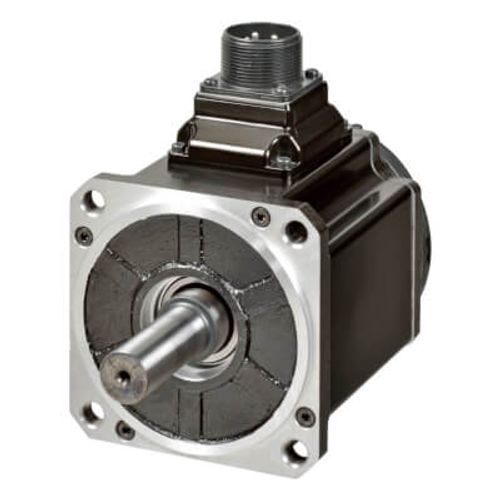

R88M-1L1K030C-BS2

1S AC servo motor, 1 kW, 400 VAC, 3000 rpm, 3.18 Nm, absolute encoder, with brake

R88M-1L1K030C-BS2
Fiyat Teklifi Bilgi Alın
Ürün verileri

Teknik Özellikler

Servo kontrol yöntemi
EtherCAT
Sürücü besleme gerilimi
400 V üç fazlı
Nominal çıkış
1kW
Nominal hız
3000 dev/dak
Nominal tork
3,18 nm
En yüksek tork
9,55 nm
Enkoder tipi
Pilsiz kesinlikle
Enkoder çözünürlüğü
23 Bit
Frenli motor
Yağ keçeli motor
Flanş boyutu kare (LC)
100mm
Mil çapı
19mm
Kamalı mil
Musluklu mil
Ürün Ağırlığı (ambalajsız)
7400 gram

Aksesuarlar

R88A-CA1E001-5BF-E
R88A-CA1E001-5BF-E

1S series servo motor power cable, 1.5 m, with brake, 400 V: 400 W to 3 kW

R88A-CA1E003BF-E
R88A-CA1E003BF-E

1S series servo motor power cable, 3 m, with brake, 400 V: 400 W to 3 kW

R88A-CA1E005BF-E
R88A-CA1E005BF-E

1S series servo motor power cable, 5 m, with brake, 400 V: 400 W to 3 kW

R88A-CA1E010BF-E
R88A-CA1E010BF-E

1S series servo motor power cable, 10 m, with brake, 400 V: 400 W to 3 kW

R88A-CA1E015BF-E
R88A-CA1E015BF-E

1S series servo motor power cable, 15 m, with brake, 400 V: 400 W to 3 kW

R88A-CA1E020BF-E
R88A-CA1E020BF-E

1S series servo motor power cable, 20 m, with brake, 400 V: 400 W to 3 kW

R88A-CR1B001-5NF-E
R88A-CR1B001-5NF-E

1S series servo encoder cable, 1.5m, 230V: 900W-1.5kW, 400V: 400W-15kW

R88A-CR1B003NF-E
R88A-CR1B003NF-E

1S series servo encoder cable, 3m, 230V: 900W-1.5kW, 400V: 400W-15kW

R88A-CR1B005NF-E
R88A-CR1B005NF-E

1S series servo encoder cable, 5m, 230V: 900W-1.5kW, 400V: 400W-15kW

R88A-CR1B010NF-E
R88A-CR1B010NF-E

1S series servo encoder cable, 10m, 230V: 900W-1.5kW, 400V: 400W-15kW

R88A-CR1B015NF-E
R88A-CR1B015NF-E

1S series servo encoder cable, 15m, 230V: 900W-1.5kW, 400V: 400W-15kW

R88A-CR1B020NF-E
R88A-CR1B020NF-E

1S series servo encoder cable, 20m, 230V: 900W-1.5kW, 400V: 400W-15kW

R88A-SC021S-E
R88A-SC021S-E

1S series cable clamp B. Used in 400 V drives and 230 V (from 1.5 kW to 3 kW)
