Omron/Sıcaklık Kontrolörleri

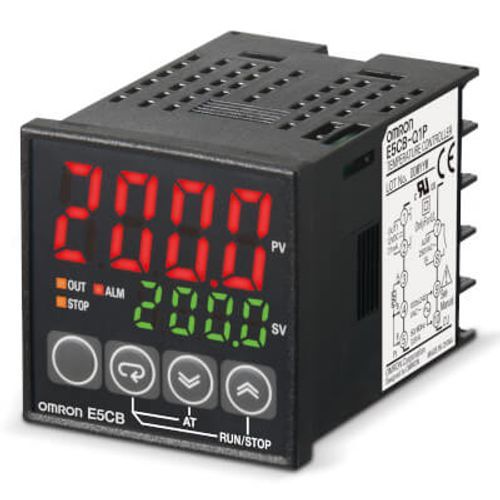

E5CB-Q1TC 100-240 VAC
Temp. controller, LITE, 1/16DIN (48 x 48mm), 12 VDC pulsed output, ON/OFF or PID Control, Thermocouple input, 1 Alarm Rel., 100-240 VAC
undefined
undefined

Ürün verileri
9 parametreTeknik Özellikler
- Boyut
- 1/16 DIN (48 x 48 mm)
- İşlevler
- PID kontrolü
- Kontrol döngülerinin sayısı
- 1
- Sıcaklık giriş tipi
- J, K, R, S, T
- Sıcaklık aralığı
- -200-1700 °C
- Alarm çıkışlarının sayısı
- 1
- Besleme gerilimi AC
- 100-240V
- Kontrol çıkışı
- Gerilim darbesi
- Terminal
- Vida
Aksesuarlar

E58-CIFQ2
E5CB & E5CC and E5EC* accessory, quick link programming cable, allows direct USB connection without requirement for communications card or power supply. Also the diplay will be powered (CX-Thermo v4.4 is needed). *For E5EC front connection.
